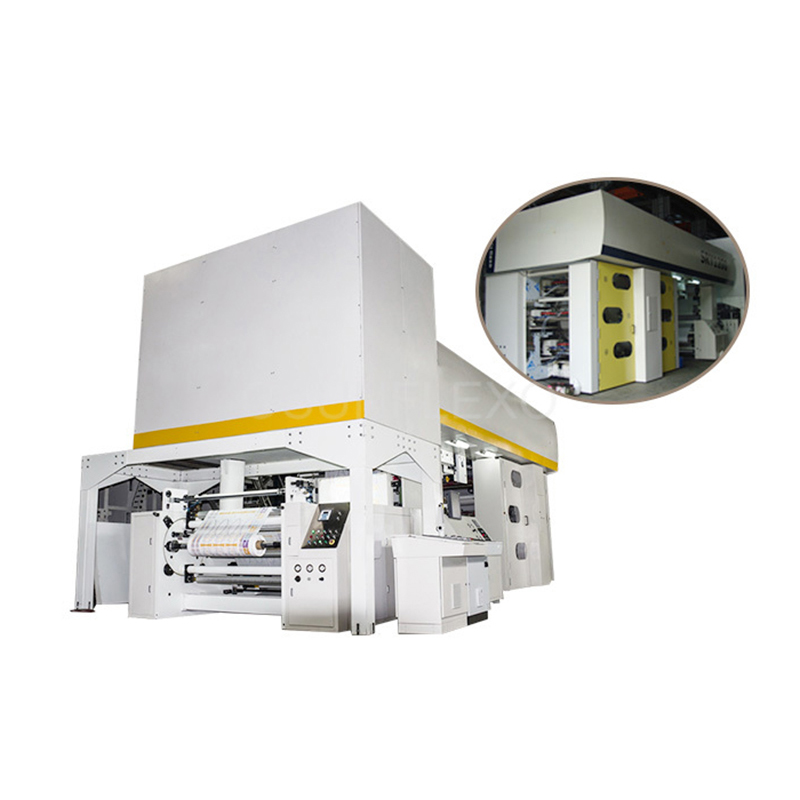

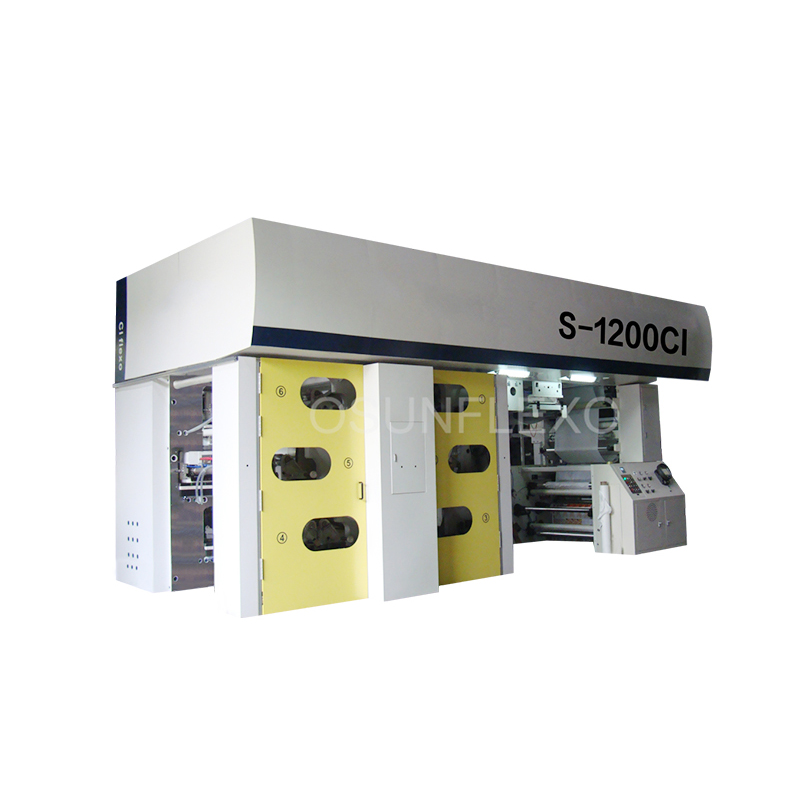

CI Flexo Printing Machine
CI Flexo Printing Machine
CI Flexo Printing Machine
CI Flexo Printing Machine
CI Flexo Printing Machine
CI Flexo Printing Machine
Constituents
Unwinding unit
Unwinding driven unit
Pre-heating unit
Printing unit
Drying unit
Rewinding driven unit
Rewinding unitl Control system and operating platform
库存: 0
Inquire
Add to Basket
Printing material:          PP\PE\PET\PVC...
Web thickness:       10-70μm
Max. printing width:    800~1500mm
Printing colors:      4~12 colors
Printing repeat:    400-800mm(φ127-φ255mm)
Plate/Tape thickness :(a) 1.7+0.38mm    (b) 1.143+0.5mm
Max. machine speed:450m/min
Printing speed:15-400m/min
Lubrication system:  Centralized lubrication
Web direction:From left to right(from operator's side)
Ink type:    Water-based,  ethanol-based or solvent-based ink
Driven method:Servo motor driven
Register precision:±0.1mm
Power supply:  380V,50Hz(Or at customer’s requirement)
Max. unwind/rewind diameter:φ600mm
Heating method:Electrical heating (Available of  hot oil, gas heating)
Total Motor power:110kw(based on 1200-8)
Running power:  60KW  (based on 1200-8)
Electrical heating power:120KW (based on 1200-8)
Max. noise:  Lower than 85dBa(1m from the machine)
Suggestion operation temperature:10-35℃
Relative humidity:30-80%(200C as reference temperature)
Elevation height: Max.1000m
Compression air: No lubrication,drying and wipe off humidity with filter
Air pressure:6Bar   Dew point:+20C
Tension control: 6~18kg/full load
Cooling water:

Filter:less than 20u

Pressure:Min.2Bar——Max.3Bar cooling roller entering water temperature(room temperature+200C):From 15℃ to 180℃

Central drum recycling water temperature:300℃±20℃

Hardness(CaCO3):2.5-4mg/L

PH:7-8.2

Machine color: RAL3020(red)+RAL7035(cream)
Machine size(L×W×H): 11m×4.5m×5.5 m
