High Speed Label Slitting Machine
High Speed Label Slitting Machine
High Speed Label Slitting Machine
High Speed Label Slitting Machine
High Speed Label Slitting Machine
High Speed Label Slitting Machine
High Speed Label Slitting Machine
High Speed Label Slitting Machine
High Speed Label Slitting Machine
High Speed Label Slitting Machine
High Speed Label Slitting Machine
High Speed Label Slitting Machine

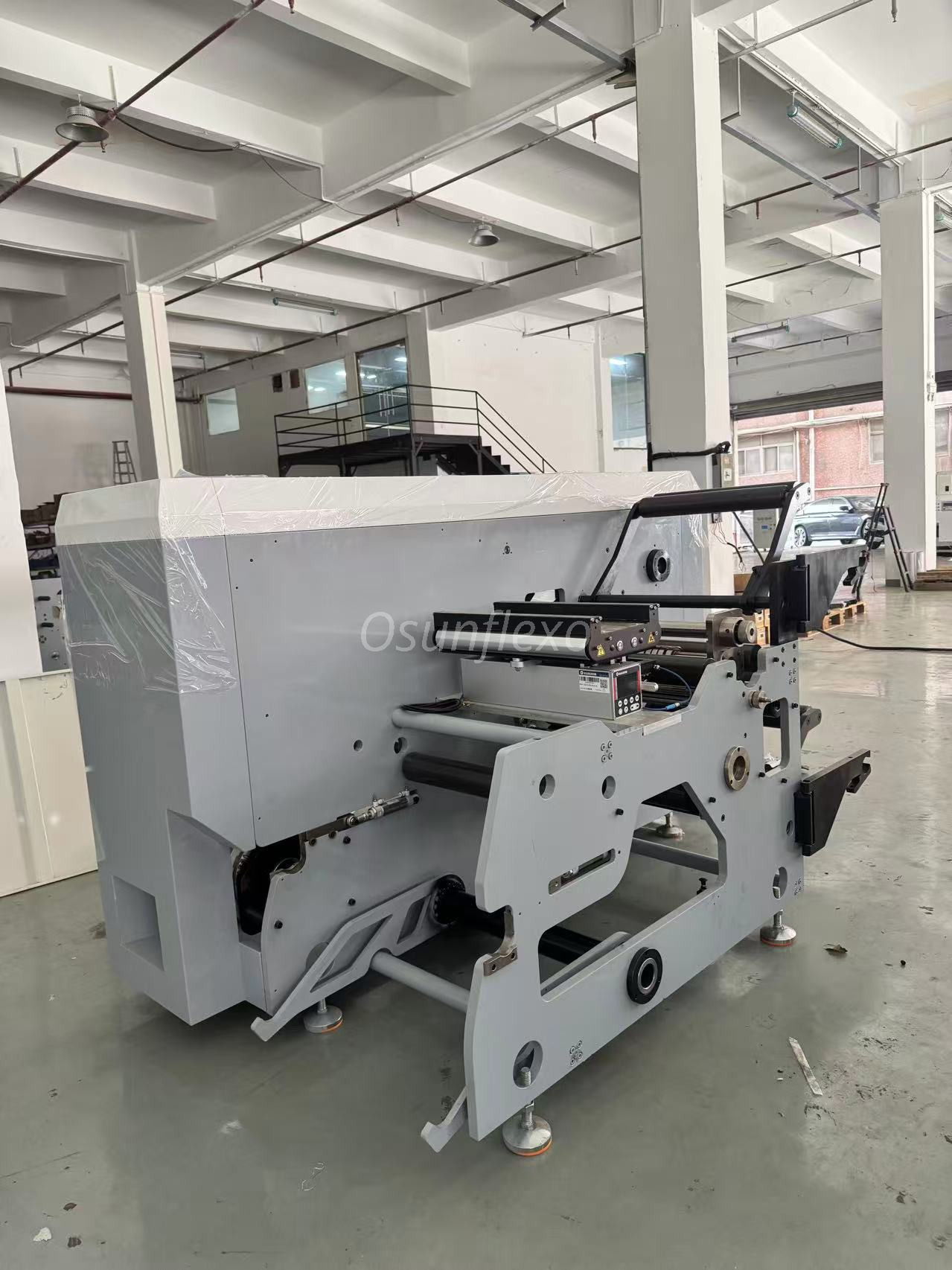

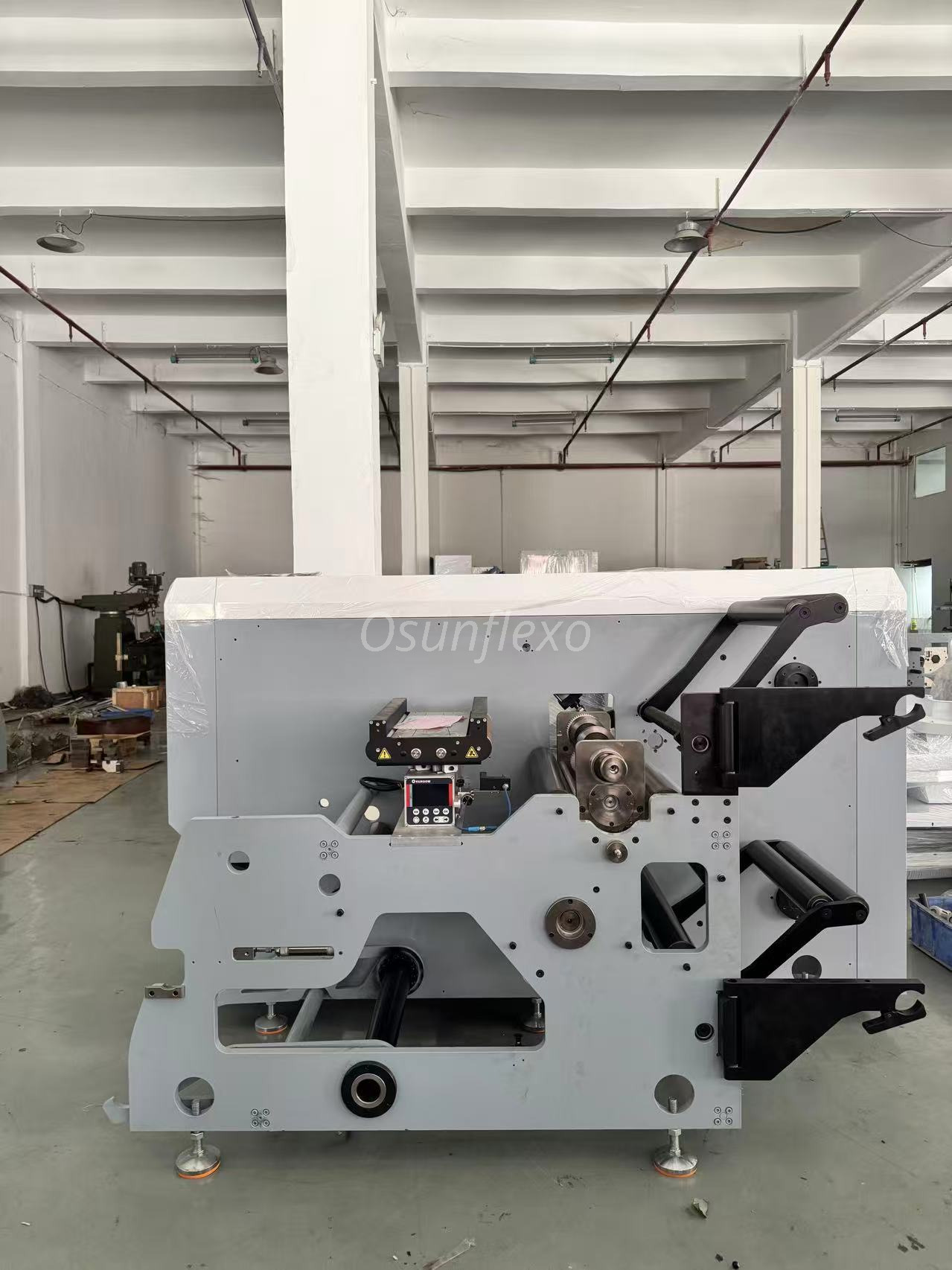

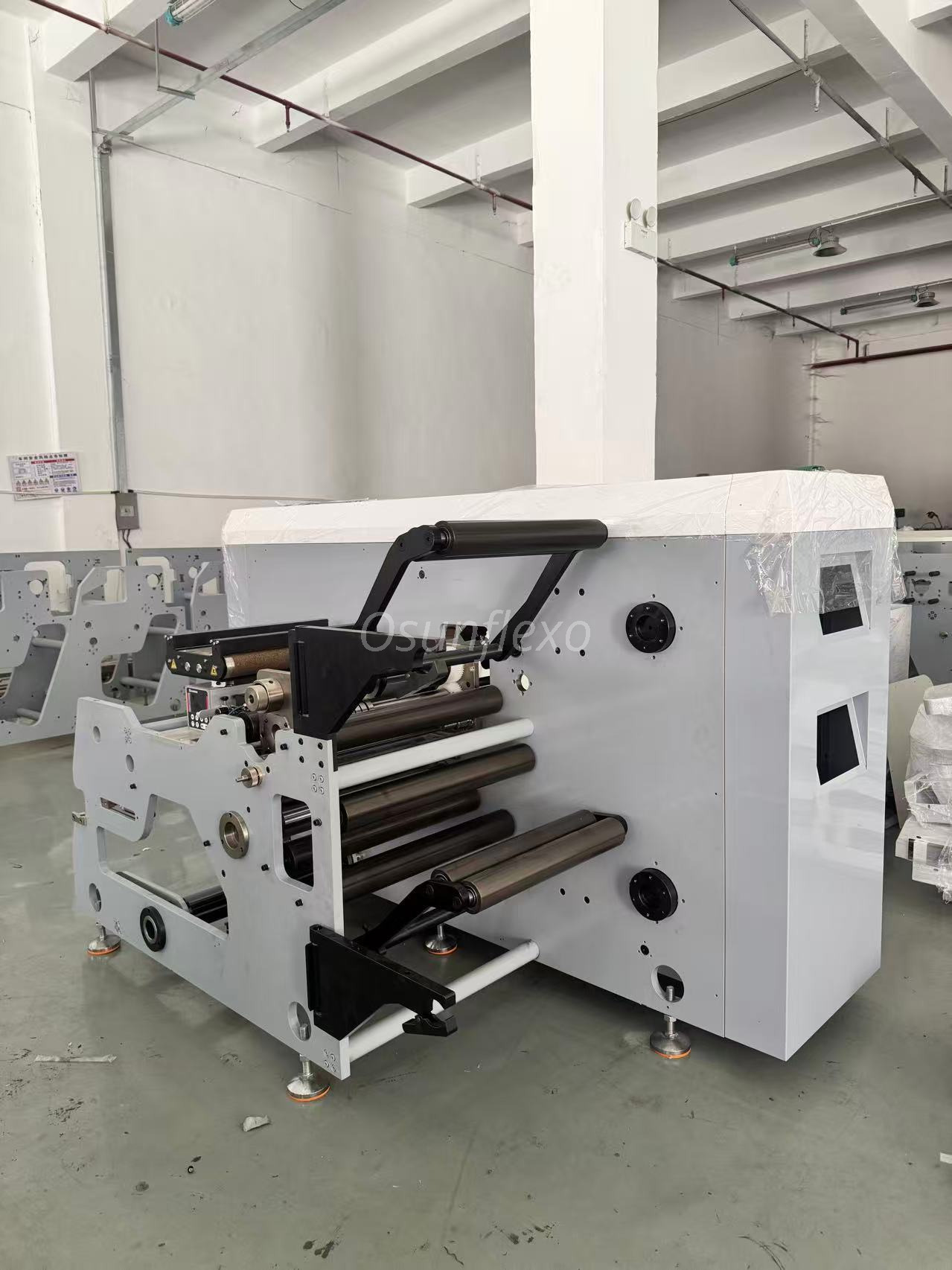

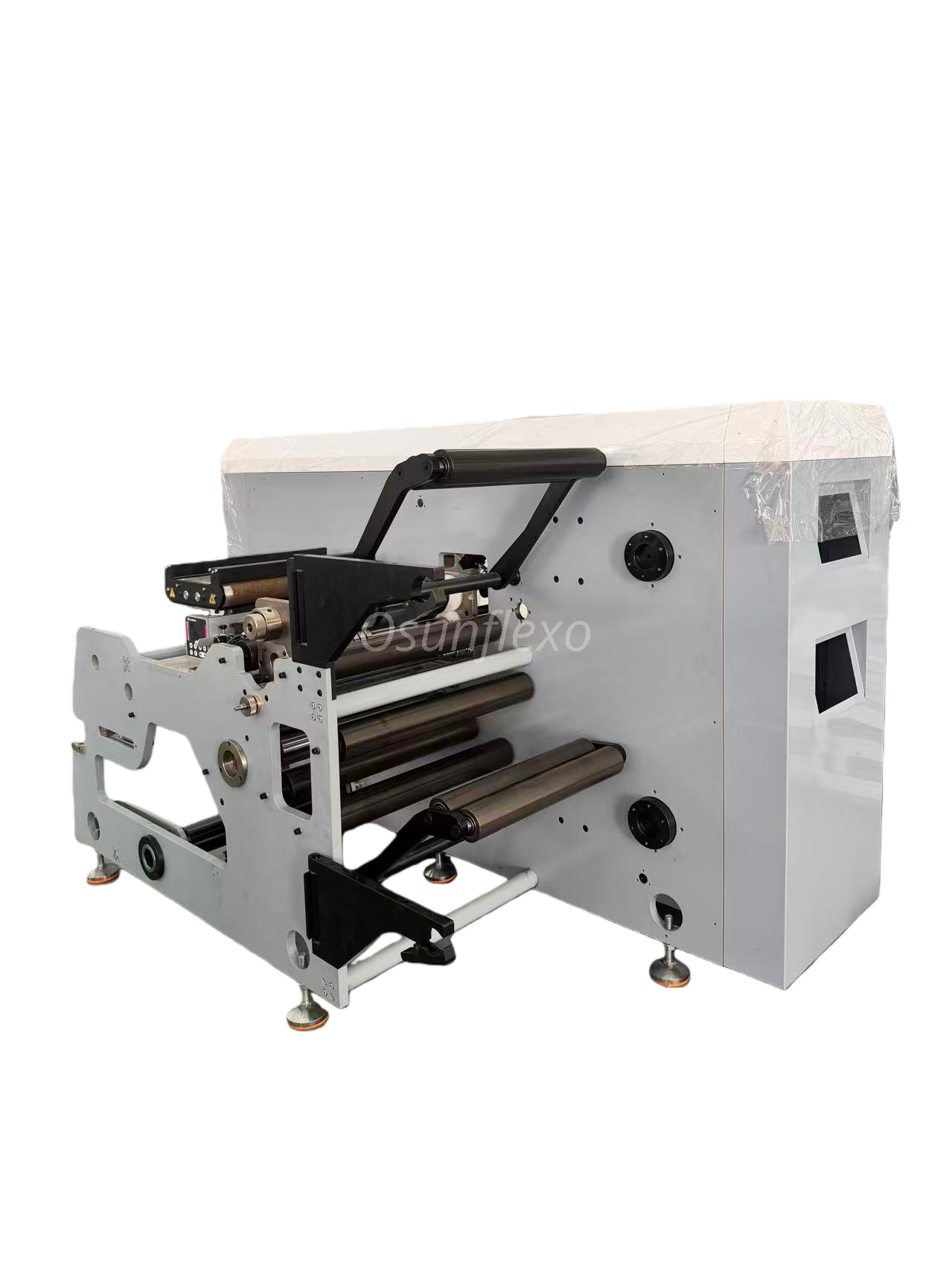

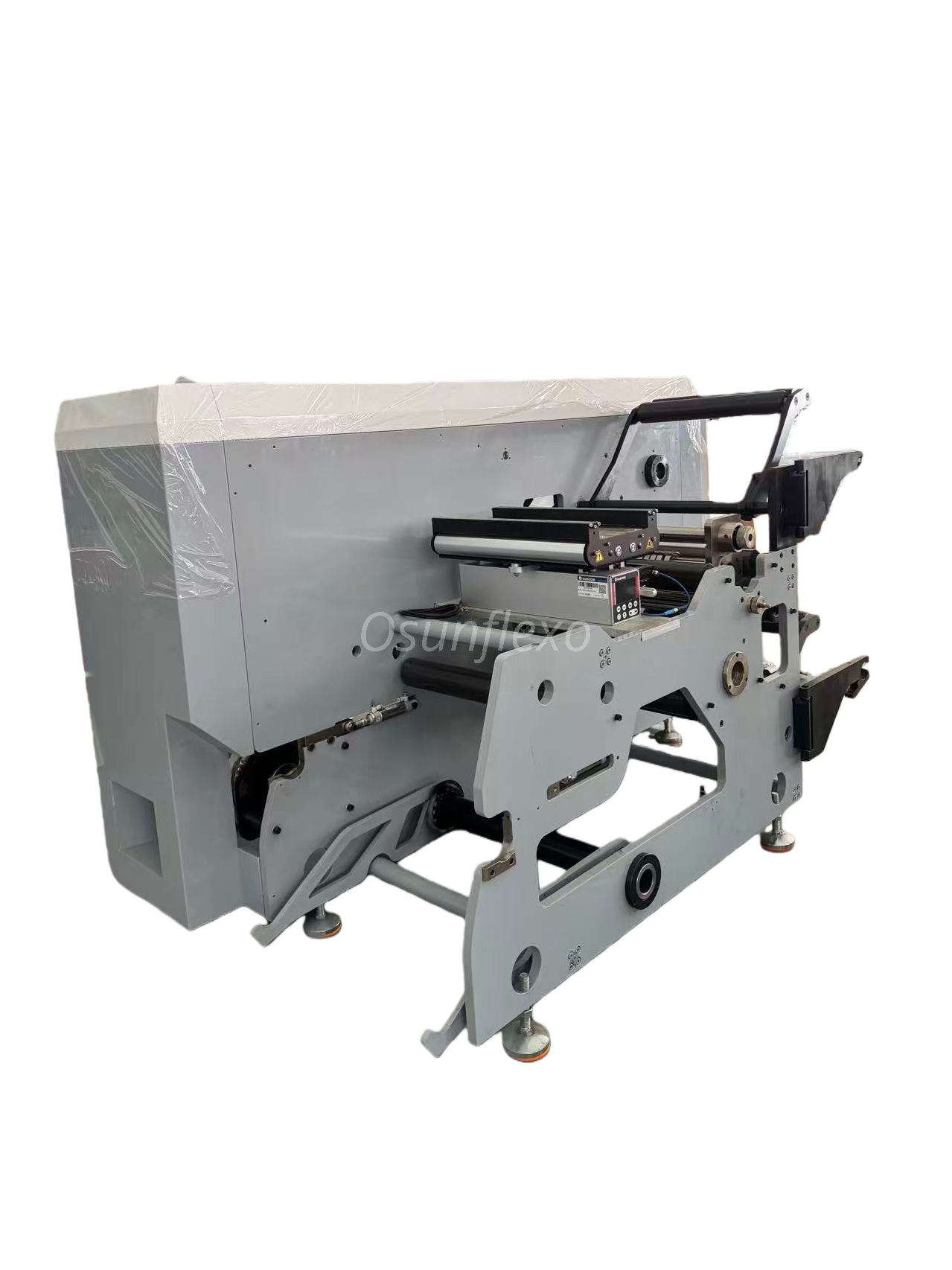

This automatic slitting machine is the auxiliary machine of die cutting machine. It is mainly for slitting narrow pieces of pr-printed label roll stack with turret rewinder for small reels. It has meter counter and number counter. The machine with advantages of compact, fast, and high efficiency, use friendly. It's one of an ideal machine for label finishing applications.
库存: 0
Inquire
Add to Basket

Max. speed

200m/min

Max. Web width

500mm

Max. Unwinding   diameter

750mm

Max. Turret rewinding   diameter

400mm

Min. Slitting   width

10mm

Dimensions

2200* 1300* 1500mm

Main motor

5KW

Voltage

220V, single   phase

Machine weight

About 2500kgs
