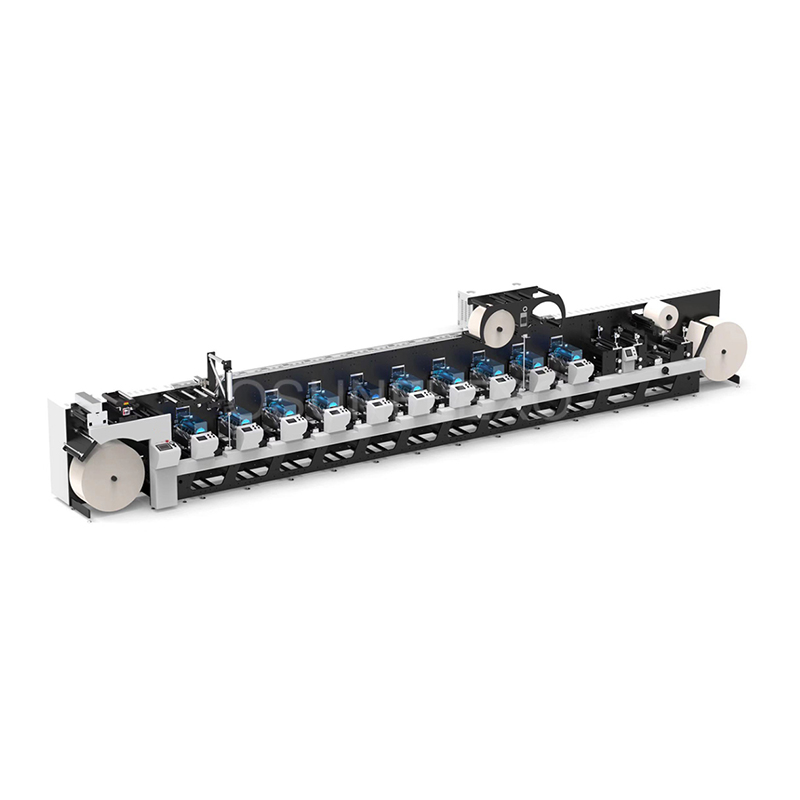

Flexo Label & Film Press (1-15 Colors)

Application: Self-adhesive label, IML label, Shrink Sleeve, Film Stock, Folding Carton……

* B&R Servo motion control + Alpha Reducer,  perfect match for flexo printing.
* Can be combined with web gravure, silk screen, offset, digital(inkjet), cold foil and hot foil for various printing applications.
*With short web path, large chill impression drum, fast job change, low waste and high efficiency.
* Advanced servo driven on infeed, printing, die cutting, outfeed, rewind, cold foil and other functions.
*Automatic register, pre-register and re-register.
*Substrates cover for all kinds of adhesive labels, paper(≥30gsm), unsupported film(PET≥12um,PVC,BOPP,PE,PA≥15um),foil≥20um and others not listed.

1.Modular structure

Each printing unit operates independently and can be flexibly combined, added, or removed. Multiple processes (such as printing, laminating, and die-cutting) can be completed inline, meeting diverse label production needs.

2.High registration accuracy

Since all color units are fixed on the same frame, with a short substrate transfer path and stable tension control, high registration precision is achieved, making it suitable for high-quality label printing.

3. Wide application range: Capable of printing on various materials (such as paper, film, and synthetic substrates), it is applicable to label printing in industries like food, personal care, and pharmaceuticals.
库存: 0
Inquire
Add to Basket

1.Modular structure


Each printing unit operates independently and can be flexibly combined, added, or removed. Multiple processes (such as printing, laminating, and die-cutting) can be completed inline, meeting diverse label production needs.


2.High registration accuracy

Since all color units are fixed on the same frame, with a short substrate transfer path and stable tension control, high registration precision is achieved, making it suitable for high-quality label printing.


3. Wide application range: Capable of printing on various materials (such as paper, film, and synthetic substrates), it is applicable to label printing in industries like food, personal care, and pharmaceuticals.

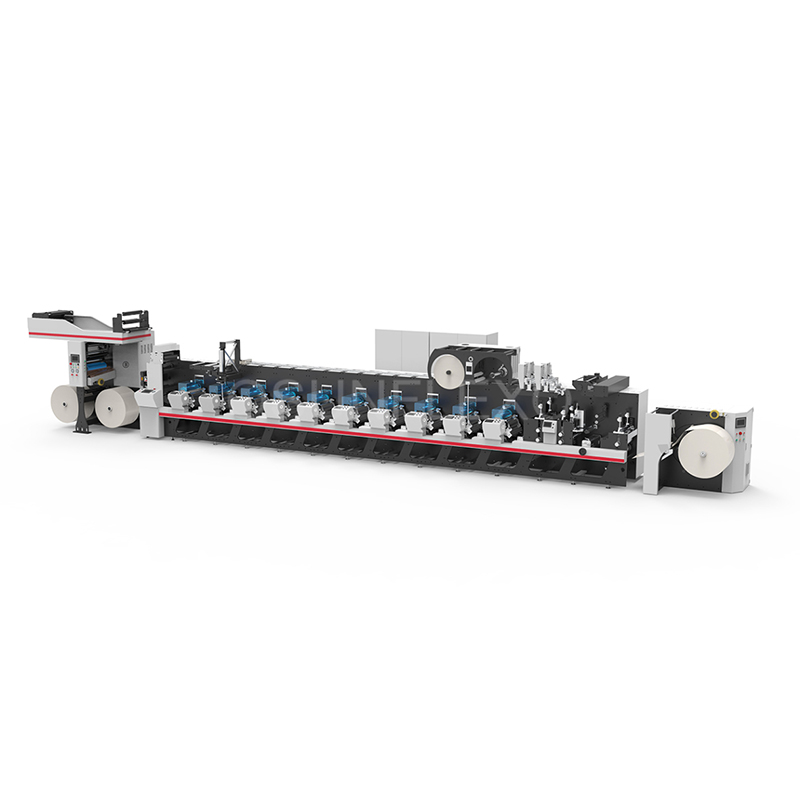

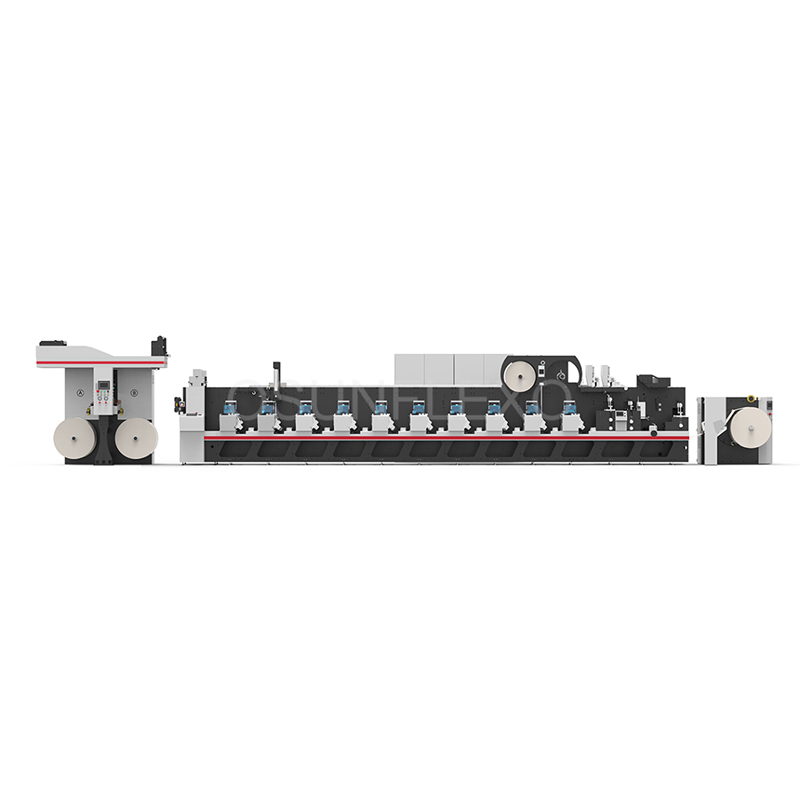

Narrow web flexo printing machine (width 370mm-670mm)

N5 Series flexo printing machine, can be combined with web gravure, sild screen, offset, digital(inkjet), cold foil and hot foil stamping, designed for all kinds of materials.

Product details

Fast job change over, lower waste, high printing quality and great efficiency

Automatic Pre-register, register and Re-register can widely meet different printing applications.

Applicable objects

All kinds of adhesive labels(paper, PET, BOPP,PVC), paper(≥30gsm), carton(≤350gsm), unsupported film (PET≥12um, PVC,BOPP,PE,PA≥15um), foil≥20um and others not listed.






Parameter Configuration

Specification 14.5"(370) 16.5"(420) 20.5"(520) 25.5"(650)
Max web width 370mm 430mm 530mm 660mm
Max pringting width 350mm 420mm 520mm 650mm
Max die-cutting width 350mm 420mm 520mm 650mm
Printing repeat length 152-610mm 152-610mm
152-610mm
152-610mm
Die-cutting repeat length 290-610mm 290-610mm
290-610mm
290-610mm
Max unwinding diameter 1016mm 1016mm 1016mm
1016mm
Max rewinding diameter 1016mm/762mm 1016mm/762mm 1016mm/762mm
1016mm/762mm
Gearing 1/8cp 1/8cp 1/8cp 1/8cp
Max printing speed single servo motor driven/dual servo motor driven:200m/min
Drying mode hot-air drying/IR drying/UV drying
Applicable ink eco-friendly water-based ink/UV ink/Solvent ink
