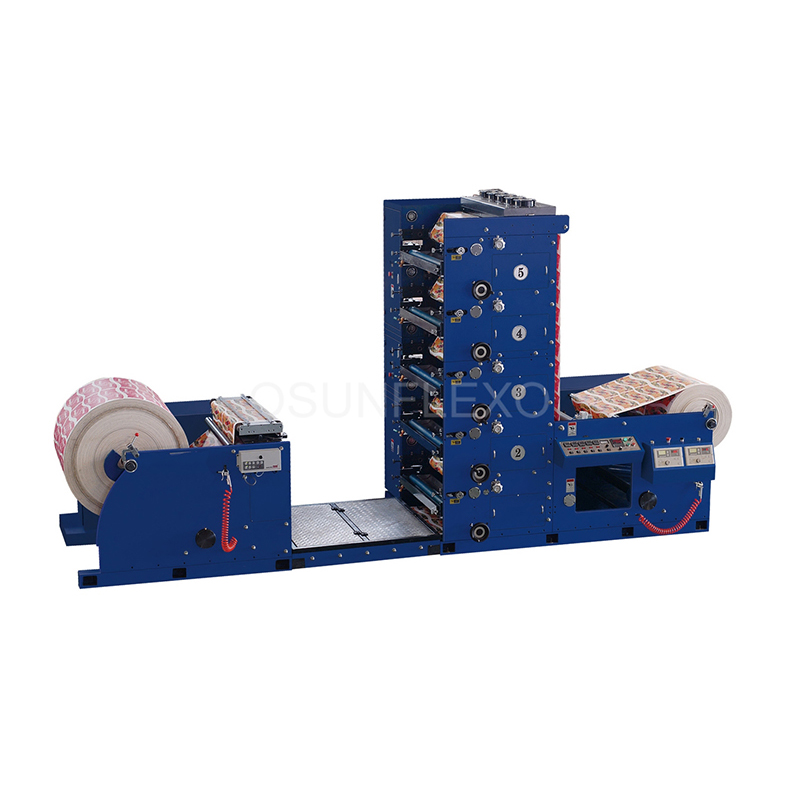

Stack Paper Printing Press
| Model | OS850 | OS950 |
| Printing Speed | 5-60m/min | 5-60m/min |
| Printing Color | 1~5 Colours | 1~5 Colours |
| Max.Web Width | 860mm | 960mm |
| Max.Printing Width | 850mm | 950mm |
| Max.Unwinding Diameter | 1400mm | 1400mm |
| Max.Rewinding Diameter | 1400mm | 1400mm |
| Printing Girth | 250-580mm | 250-580mm |
| Precision Of Chromatography | 士0.10mm | 士0.10mm |
| Dimensions (K*W*H) | ||
| Machine Weight |
Stack Film Printing Press
This stack flexo press is an ideal machine for plastic film printing. The main advantages of this machine are great speed and great printing quality, it requires no large area due to it's compact design. The price is much lower than CI Flexo film printing machine.
Major performance
Printing color | 1~8color | 1~8color | 1~8color |
Printing width | 600mm~1600mm | 600mm~1600mm | 600mm~1600mm |
Highest machine speed | 90m/min | 130m/min | 180m/min |
Highest printing speed | 80m/min | 110m/min | 150m/min |
Printing length （repeat） | 190 ~ 889mm (7.5"~ 35") | 190 ~ 889mm (7.5"~ 35") | 254 ~ 889mm (10"~ 35") |
Trapping roller | Machinery control | Machinery control | Pneumatic control |
Register precision | ±0.25mm | ±0.20mm | ±0.15mm |
Register mode | Machinery- driven | Machinery- driven | Motor-driven |
Driven mode | Helical gear | Helical gear | VOGEL gearbox |
Unwind reel diameter | Φ600mm | Φ600mm | Φ800mm |
Rewind reel diameter | Φ600mm | Φ800mm | Φ800mm |
Ink pump | Non | Single way diaphragm pump | Two way diaphragm pump |
Anilox roller | Ceramic anilox roller | Ceramic anilox roller | Ceramic anilox roller |
Doctor blade/Plastic roller | Plastic roller | Single side type | Double side enclosed type |
Tension scope | 3 ~ 50kg | 3 ~ 50kg | 3 ~ 50kg |
Tension precision | ±0.3kg | ±0.3kg | ±0.2kg |
Unwind and rewind core | Φ76mm | Φ76mm | Φ76mm |
Deviation correction system | Auto hydraulic pressure | Auto servo pressure | Auto servo pressure |
Frame thickness | 75mm | 75mm | 75mm |
Printing plate lifting system | pneumatic press control | Auto hydraulic pressure | Auto hydraulic pressure |
Master motor power | 7.5Kw | 11Kw | 18Kw |
Rewinding motor | 2.2Kw | 5.5Kw servo motor | 7.5Kw servo motor |
Unwinding motor | NO. | NO. | 7.5Kw servo motor |
Blower of heater | 4.5Kw | 4.5Kw | 7.5Kw |
Drying power | 26Kw | 32Kw | 45 Kw |
Blower of nature wind | 1.1 Kw | 1.5 Kw | 1.5Kw |
Powder brakes | Japan Mitsubishi 5KG | Japan Mitsubishi 10KG | NO. |
Powder clutch | Japan Mitsubishi 5KG | NO. | NO. |
Tension control | China TC818 | Japan Mitsubishi / PLC+ dancing rollers | PLC+ dancing rollers |
Unidirectional bearing | Germany | Germany | Germany |
Total power | 42Kw | 55Kw | 85KW |
Outline size | 4.8m×2.85m×3.0m | 5.0m×2.85m×3.2m | 6.5m×3.56m×3.6m |
Total weight | 6260KG | 7480KG | 10950 KG |
