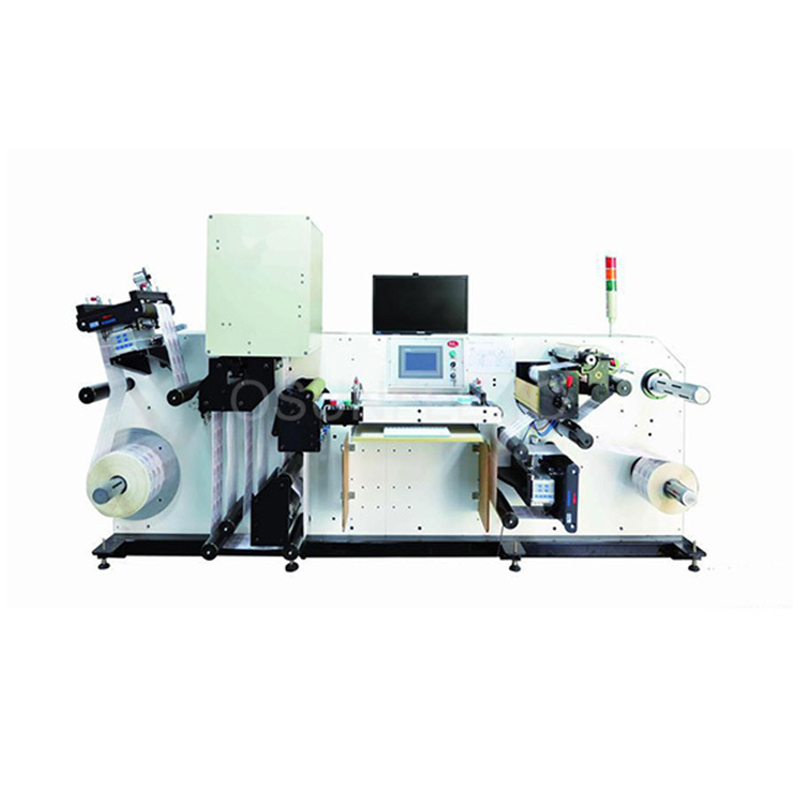

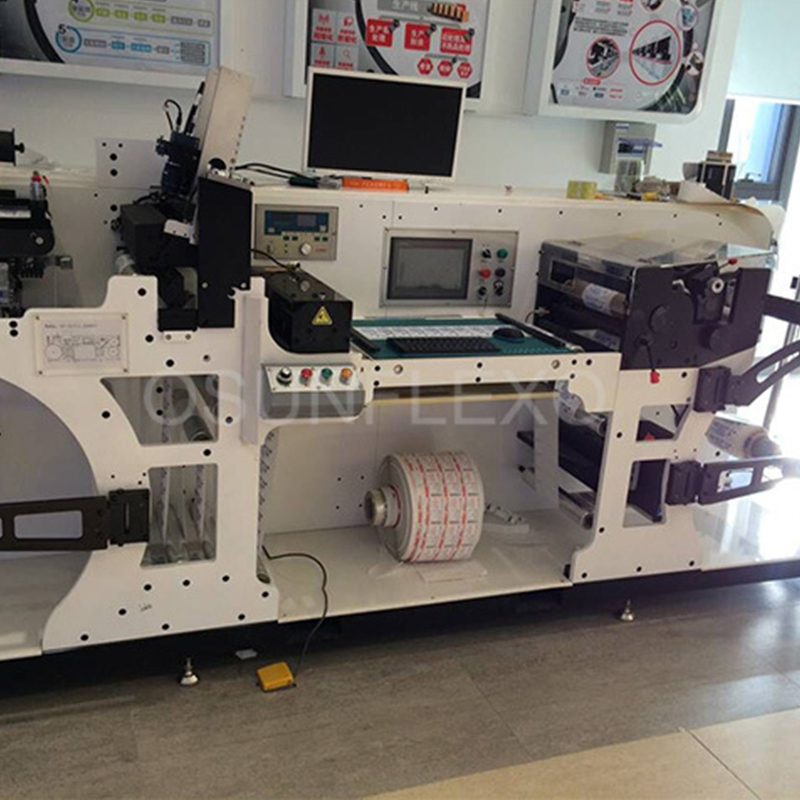

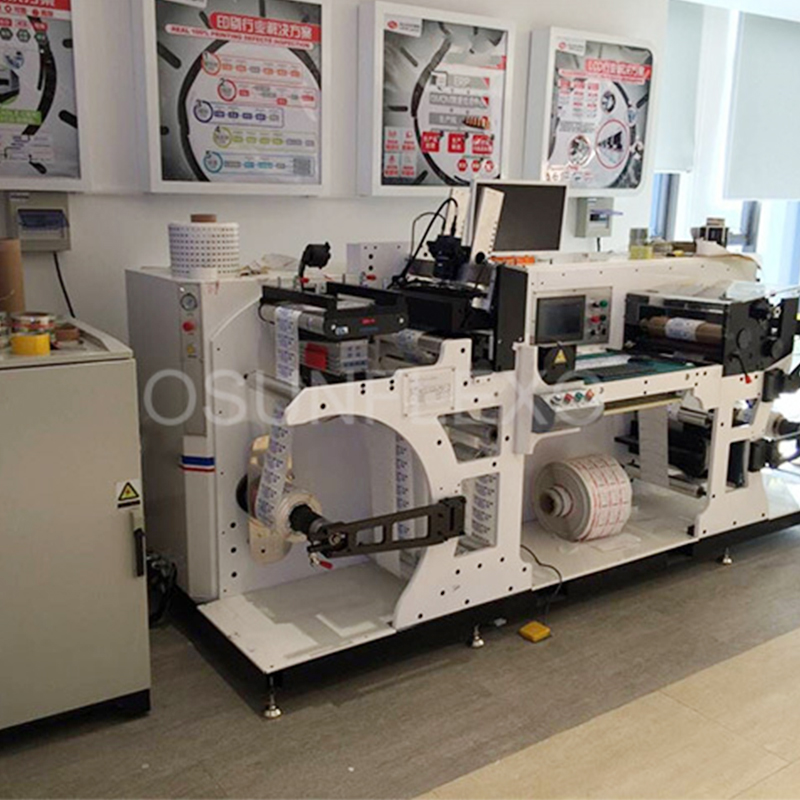

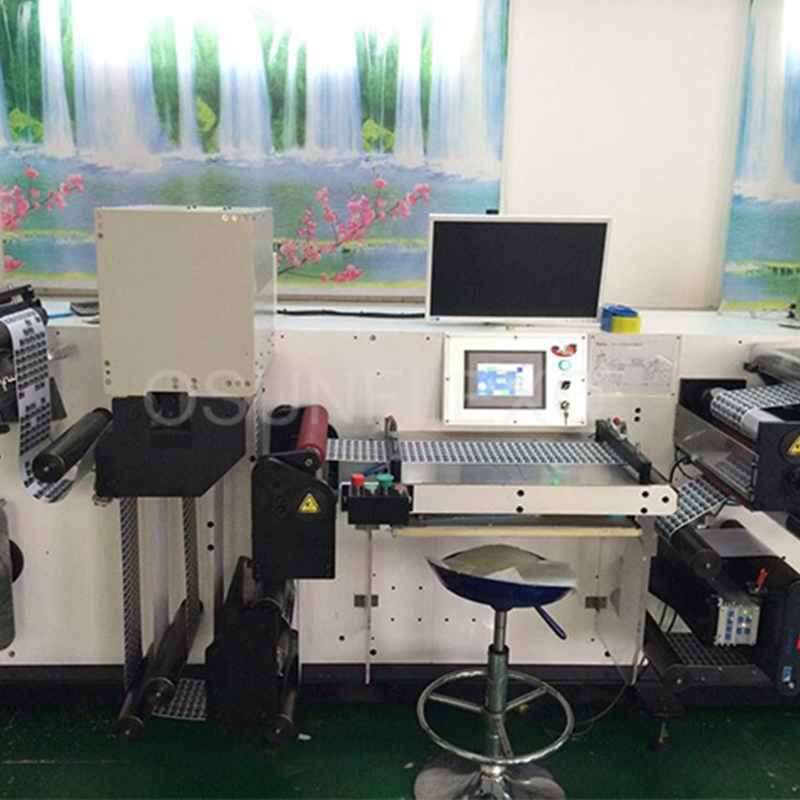

| ITEMS | DESCRIPTION |
1.SPECIFICATION | Application field | self-adhesive label for field of daily chemicals, food and pharmaceuticals |
| Applicable materials | Opaque label, transparent label, gold stamping and coating materials |
| Defect type | Dirty spot, missing print, miss-registation,deckle,color aberration and stamping |
| Variable Date | CODE128, CODE39,CODE93,EAN8, EAN13,UPCA,UPCE,ITF,CODEBAR, QR,DM,PDF417,SN CODE, |
| Max. Web Width(mm) | 300 |
| Max. Speed(m/min) | 200 |
| Min. defect Accuracy（mm2） | 0.03 |
| Miss-registration(mm) | ≥0.07 |
| Color Aberration (△E) | ＞3 |
| System Outline | E-cabinet: 700mmX700mmX1250mm;Rewinder:3100mm×1200mm×1300mm; totally 2500kg weight; |
| Power | Inspection :380V ±20V AC, @50/HZ;30A, |
| Max. Web Diameter | Unwind 700mm , Rewind 650mm |
| Tension Control | Automatic, 15N~150N |
| Rewinding edge evenness | ±0.35mm |
| Stop position Accuracy | ±5cm (Automatically stop to show NG label location) |
| Slitting | 6 blades, Slitting width min. 30mm |
| Number of guiders | 2 |
| Air supply | 60～100p.s.i |
2.CONFIGURATION | Vision Imaging unit | 1 pcs Canada DALSA 4K RGB color high-frequency COMS line scan industrial camera
1Japan Pentax high-speed color optical lens
1 hight-light 2D light source, 1 background light source |
| Imaging process platform unit | 1 Canada CORECO high-speed image acquisition and processing card
1 High speed image processing industrial computer |
| Software | Inspection software Printing Plus V5.0 English Edition Published General defects inspection module Model file setup module Corlor aberration inspection module Mis-register inspection module Dieline(streak) inspection module VDP(Barcode, QR Code) inspection mudule |
| Electronic control unit | Power supply & signal control 1 pcs 2K resolution encoder 1 pcs Cabinet 1 pcs camera power socure supply 2 pcs LED lights 1 pcs electronics connection pad ( 7480 board, IO board,) 1 pcs industrial airconditioner |
