Production range:
Three side seal bags
Three side seal zipper bags
Stand-up bags
Stand-up zipper bags
Stand-up bottom gusset bags
Stand-up bottom guest zipper bags
Four sides seal bags with two side gusset
Seamless stand-up bag
Main Specifications:
Main electrical equipment:Five servo motor with Matsushita programmable controller(PLC)
Main drive:Servo motor
Temp.control:20 stages
Material type: Laminated film like BOPP.COPP.PET.PVC.NYLON,multi-layer extrusion film.AL.plated film,Paper-Plastic laminated web
Max. bag-making speed:
Three-edge sealed bag: 3-140 pcs/min
Self-standing bag:3-130 pcs/min (actual tempo depending on the length and shape of bags to be made)
Zipper bag: 3-130 pcs/min (actual tempo depending on the length and shape of bags to be made)
Stan-up bags with zipper: 3-120 pcs/min ( Double cutting blade model: 110 pcs/min)
Max. reel-out linear speed:≤35M/min (depending on the length and shape of bags to be made)
Dimensions of bags to be made: Length:three-edge sealed bag 400 mm,Zipper bags 370mm, More length value is realized by multiple-feeding. N=1,2,3,4,5,6 (multiple-feeding)
width:600 mm(3 side sealed bags); 540mm(Zipper bag, Stand-up bags)

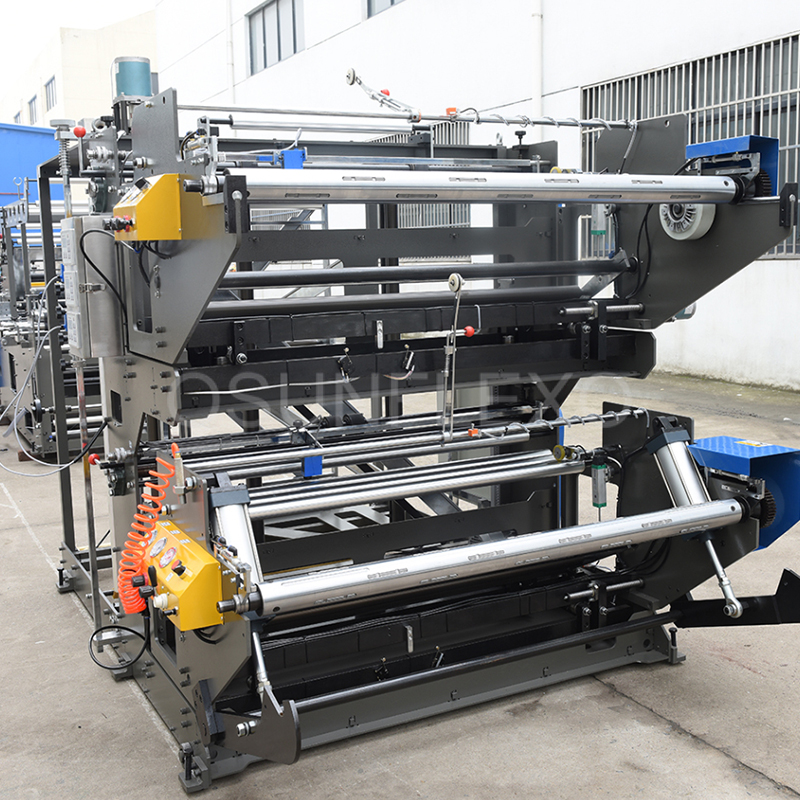

Max. size reeled material: Ф800mm×1240mm(diameter×width)
Positioning precision: ≤0.5mm

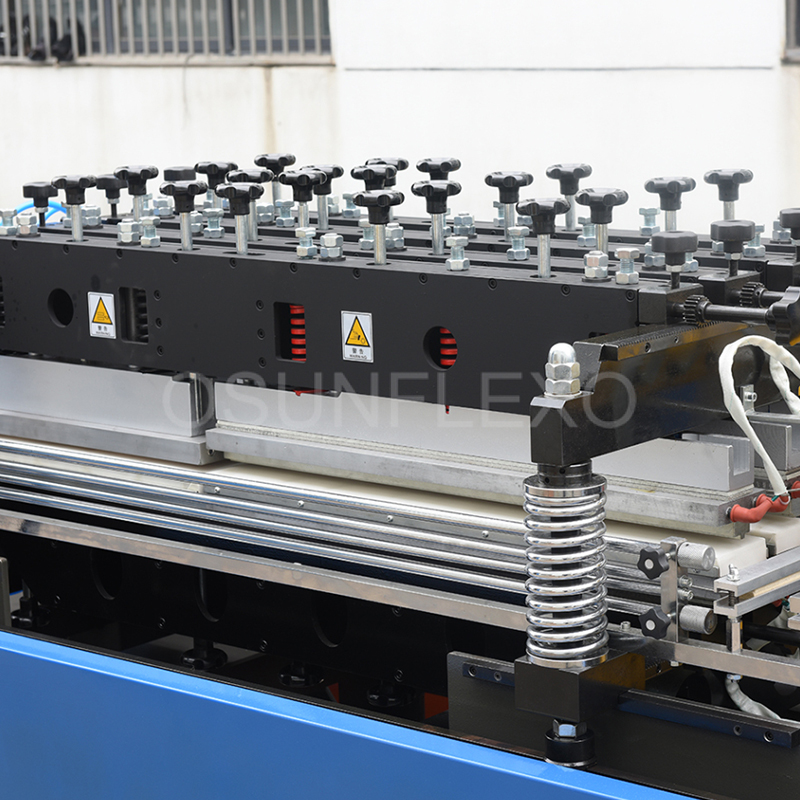

Heat sealing knife:
Vertical: 4 groups,840mm
cooling: 4 groups 520mm
Horizontal: 4 groups 640mm, cooling: 2 groups 640mm
Zipper: 2 groups 750mm, cooling: 2 groups 400mm
Nos. of electric-heating block: 20 pieces
Temp. setting range: Room temp.~300ºC
Power of entire machine: 58kW
Overall dimensions: 16000 × 2200 × 1900 mm (L × W × H)
Net weight of entire machine: approx. 7500kg
Color: Grey color, black body and stainless cover (customization is available)
Model/type of control system: PLC + 10" Touch screen
