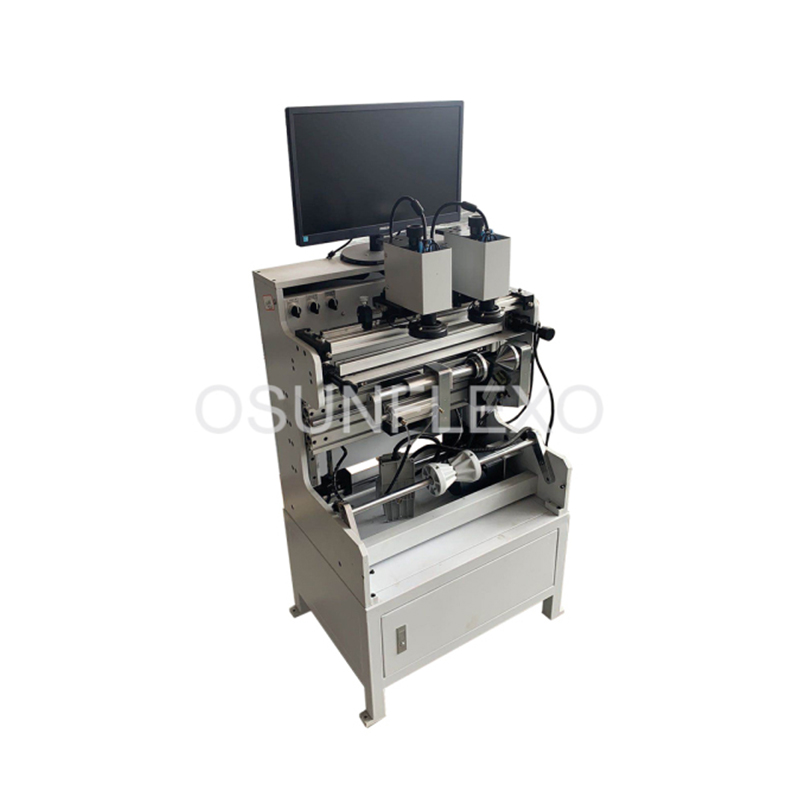

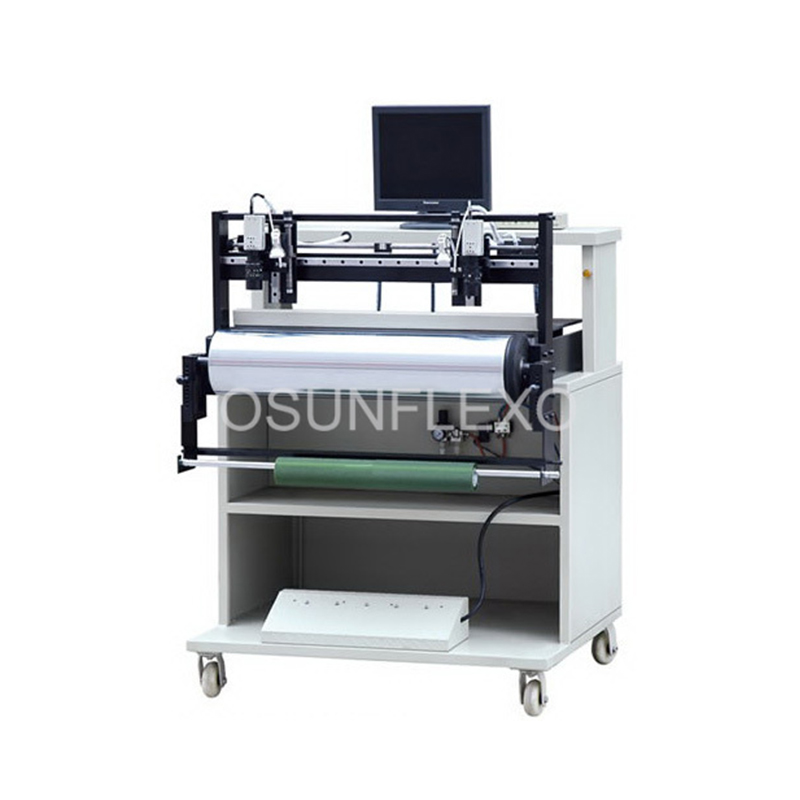

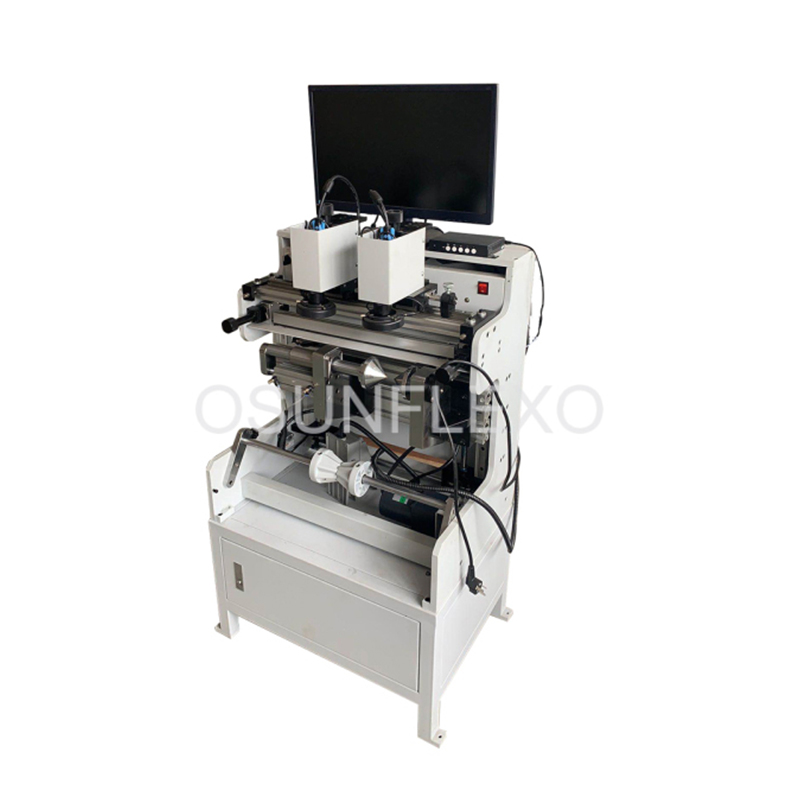

Sleeve Plate Mounter General Specifications

1. Left-right registration is adapted with very precise liner guide rail(Brand Hiwin, Taiwan). The camera lens is adjustable.

2. It comes with advanced zoom fixed lens , high-definition CCD camera, LCD monitor.

3. Camera can be adjusted with 6 direction, with adjustable parallelism, high precision plate mounting, accuracy registration. It adapt mechanical fine-tuning mechanism for registration so that exact alignment can be moved with the reference line of the plate, to make sure the plate position and precision.

4. With Special plate pressure roller, so that the plate and double-sided tape tightlock, reliable and practical.

5. The accuracy can be directly checked once after mounting finished to make sure the mounting quality.

6. Fast plate mounting, easy operation, efficiency is greatly improved.

7. It is suitable to flexo press, letterpress plate mounting.

8.  It comes with an adapter to fit inner diameter 85mm and 700mm long sleeves plate mounting.

9. It can do shaftless plate roller plate mounting.


Parameter(Standard model)

Model

Plate length(mm)

Dimension(mm)

Weight (KG)

Power (KW)

Multifunctional

1000

1350×510×1600

400

0.9


Plate Mounting Machine

Production range

Three side seal bags

Three side seal zipper bags

Stand-up bags

Stand-up zipper bags

Stand-up bottom gusset bags

Stand-up bottom guest zipper bags

Four sides seal bags with two side gusset

Seamless stand-up bag


Main Specifications

Main electrical equipment: Five servo motor with Matsushita programmable controller(PLC)

Main drive: Servo motor

Temp.control: 20 stages

Material type: Laminated film like BOPP.COPP.PET.PVC.NYLON,multi-layer extrusion film.AL.plated film,Paper-Plastic laminated web


Max. bag-making speed

Three-edge sealed bag: 3-140 pcs/min

Self-standing bag: 3-130  pcs/min (actual tempo depending on the length and shape of bags to be made)
Zipper bag: 3-130  pcs/min (actual tempo depending on the length and shape of bags to be made)
Stan-up bags with zipper: 3-120 (pcs/min)
Double cutting blade model: 110 (pcs/min)

Max. reel-out linear speed:≤35M/min (depending on the length and shape of bags to be made)

Dimensions of bags to be made: Length:three-edge sealed bag 400 mm,Zipper bags 370mm, More length value is realized by multiple-feeding. N=1,2,3,4,5,6 (multiple-feeding)

width: 600 mm(3 side sealed bags) 540mm(Zipper bag, Stand-up bags)

Max. size reeled material: Ф800mm×1240mm(diameter×width)

Positioning precision: ≤0.5mm


Heat sealing knife

Vertica: 4 groups,840mm, cooling: 4 groups 520mm

Horizontal: 4 groups 640mm, cooling: 2 groups 640mm

Zipper: 2 groups 750mm, cooling: 2 groups 400mm

Nos. of electric-heating block: 20 pieces

Temp. setting range: Room temp.~300ºC

Power of entire machine: 58kW

Overall dimensions: 16000 × 2200 × 1900 mm (L × W × H)

Net weight of entire machine: approx. 7500kg

Color: Grey color, black body and stainless cover (customization is available)

Model/type of control system: PLC + 10" Touch screen
